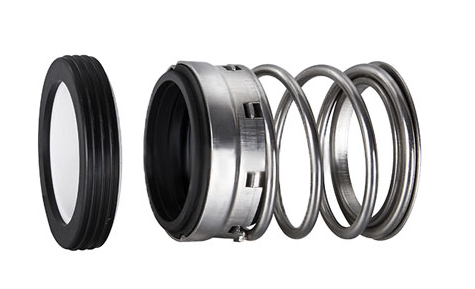

Mechanical Seal T1 replace Aesseal P05U seal John Crane type 1 seal
T1
Mechanical seal T1 replace to:
Burgmann MG901/ D1-G55
Aesseal P05U seal
John Crane type 1 seal
Burgmann MG901/ D1-G55
Aesseal P05U seal
John Crane type 1 seal
Quantity:
Description:
Mechanical Seal T1 replace Aesseal P05U seal John Crane type 1 seal
Designed by single or double, Ningbo Xindengseal supply standard and OEM elastomer bellows seals to suit different applications and media in various industries with a variety of suitable materials. Most of Xindengseal rubber bellow seals can replace your pump seal easily.
Operational Conditions:
Temperature: -20℃ to +120℃
Pressure: ≤2.5MPa
Speed: ≤15m/s
Temperature: -20℃ to +120℃
Pressure: ≤2.5MPa
Speed: ≤15m/s
Materials:
Stationary Ring: Ceramic (Alumina), Silicon Carbide Reaction Bonded, Silicon Carbide Sintered Pressureless, Ni-binder Tungsten Carbide, Co-binder Tungsten Carbide
Rotary Ring: Resin Impregnated Carbon Graphite (Furan), Antimony Impreg, Carbon Graphite, Silicon Carbide Sintered Pressureless, Silicon Carbide Reaction Bonded, Co-binder Tungsten Carbide, Ni-binder Tungsten Carbide
Secondary Seal: Nitrile (NBR), Ethylene Propylene (EPDM), Fluorocarbon Rubber (Viton)
Stationary Ring: Ceramic (Alumina), Silicon Carbide Reaction Bonded, Silicon Carbide Sintered Pressureless, Ni-binder Tungsten Carbide, Co-binder Tungsten Carbide
Rotary Ring: Resin Impregnated Carbon Graphite (Furan), Antimony Impreg, Carbon Graphite, Silicon Carbide Sintered Pressureless, Silicon Carbide Reaction Bonded, Co-binder Tungsten Carbide, Ni-binder Tungsten Carbide
Secondary Seal: Nitrile (NBR), Ethylene Propylene (EPDM), Fluorocarbon Rubber (Viton)
Applications:
Clean water,
Sewage water
Oil and other moderately corrosive fluids
Clean water,
Sewage water
Oil and other moderately corrosive fluids
Seat Type:
Alternative: T11
Alternative: T11
