Mechanical Seals T59B replace Burgmann BT-C56.KB , Aesseal M04 , John Crane T59B
T59B

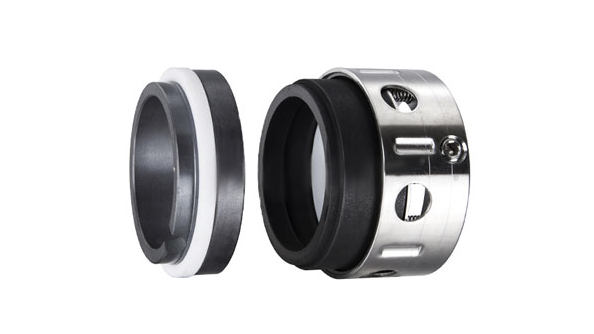

Mechanical seal T59B
Replacement to:
Burgmann BT-C56.KB seal
Aesseal M04 seal
John Crane T59B seal
Replacement to:
Burgmann BT-C56.KB seal
Aesseal M04 seal
John Crane T59B seal
Quantity:
Description:
The Mechanical Seal T59B is engineered for corrosive and high-purity duties. Every PTFE T59B Mechanical Seal uses virgin PTFE bellows plus carbon vs. ceramic faces, resisting –20 °C to 150 °C and 16 bar. Its short working length lets the Industrial Pump T59B Mechanical Seal retrofit ANSI, DIN, and ISO pumps without spacer changes. Balanced design lowers heat and torque, extending seal life. Specify Mechanical Seal T59B interchangeably with PTFE T59B Mechanical Seal for reliable, leak-free performance in any Industrial Pump T59B Mechanical Seal application.
The Mechanical Seal T59B is engineered for corrosive and high-purity duties. Every PTFE T59B Mechanical Seal uses virgin PTFE bellows plus carbon vs. ceramic faces, resisting –20 °C to 150 °C and 16 bar. Its short working length lets the Industrial Pump T59B Mechanical Seal retrofit ANSI, DIN, and ISO pumps without spacer changes. Balanced design lowers heat and torque, extending seal life. Specify Mechanical Seal T59B interchangeably with PTFE T59B Mechanical Seal for reliable, leak-free performance in any Industrial Pump T59B Mechanical Seal application.
Operational Conditions:
Temperature: -40℃ to +250℃
Pressure: ≤2.5MPa
Speed: ≤15m/s
Temperature: -40℃ to +250℃
Pressure: ≤2.5MPa
Speed: ≤15m/s
Materials:
Stationary Ring: Silicon Carbide, TC, Carbon
Rotary Ring: Silicon Carbide, Ceramic, TC
Secondary Seal: PTFE
Spring and Metal Parts: SUS304,SUS316
Stationary Ring: Silicon Carbide, TC, Carbon
Rotary Ring: Silicon Carbide, Ceramic, TC
Secondary Seal: PTFE
Spring and Metal Parts: SUS304,SUS316
Applications:
Clean water,
sewage water
oil and other moderately corrosive fluids
Clean water,
sewage water
oil and other moderately corrosive fluids
Stationary Seat:
Standard: G6
Alternative:
Standard: G6
Alternative:
