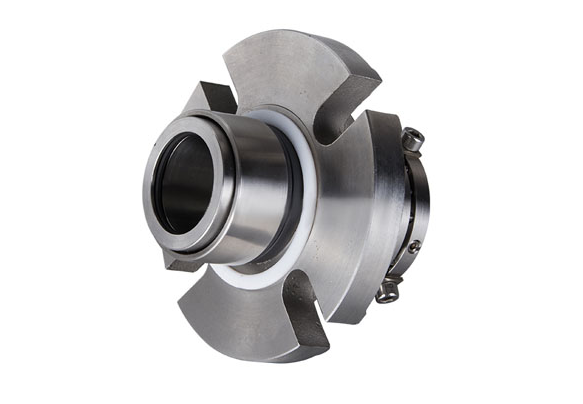

Mechanical Seal TGU0 Replace the mechanical seal of Aesseal CDSA cartridge
TGU0
Mechanical seal TGU0
Replacement to:
Aesseal CDSA cartridge mechanical seal
Replacement to:
Aesseal CDSA cartridge mechanical seal
Quantity:
Description:
The Mechanical Seal TGUO offers reliable sealing for aggressive media in process plants. Each TGUO Mechanical Seal pairs silicon-carbide faces with FEP O-rings, resisting temperatures from –40 °C to 200 °C and pressures to 20 bar. Designed as a drop-in cartridge, the TGUO Mechanical Seal for Industrial Pumps fits ANSI, DIN, and ISO bore chambers without modification, cutting downtime by 50 %. Its balanced geometry reduces heat and wear, extending MTBF. Choose Mechanical Seal TGUO solutions for leak-free performance across chemical, petrochemical, and water-treatment TGUO Mechanical Seal for Industrial Pumps applications.
Operational Conditions:
Temperature: -20℃ to +220℃
Pressure: ≤2.5MPa
Speed: ≤15m/s
Materials:
Rotary Ring: CAR,SIC,TC
Secondary Seal: Viton,EPDM,KALREZ
Spring and Metal Parts: SUS304,SUS316
Applications:
Clean water,
sewage water
oil and other moderately corrosive fluids
Stationary Seat:
Standard:
Alternative:
