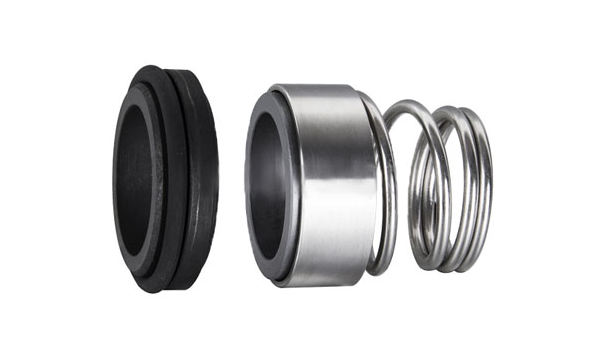

Mechanical Seal 17D

Mechanical Seal 17D Replace VULCAN 7D

17D
Mechanical seal 17D
Replacement to:
Roten Uniten 5 seal
VULCAN 7D seal
Quantity:
Contact Now
add to cart
Mechanical Seal 17D
Describe ：
   Mechanical Seal 17D cartridge-balanced design locks faces for zero leak at 16 bar, 180 °C; each Mechanical Seal 17D pairs 316SS and carbon-graphite, giving Carbon 17D Mechanical Seal outstanding chemical and abrasion resistance. 17D Mechanical Seal fits ANSI/DIN bores 18–80 mm, letting Carbon 17D Mechanical Seal retrofit centrifugal, chemical and HVAC pumps in minutes. Install 17D Mechanical Seal to cut MTBR 35 %—because Mechanical Seal 17D proves 17D Mechanical Seal and Carbon 17D Mechanical Seal outclass standard seals every day.
Operational Conditions:
Temperature: -30℃ to +200℃
Pressure: ≤0.8MPa
Speed: ≤18m/s

Materials:
Stationary Ring: Silicon Carbide, TC, Carbon
Rotary Ring: Silicon Carbide, Ceramic, TC
Secondary Seal: NBR, EPDM, Viton
Spring and Metal Parts: SUS304,SUS316
Applications:
Clean water,
sewage water
oil and other moderately corrosive fluids
Stationary Seat:
Standard:
Alternative:

Mechanical Seal 17D Feature

Mechanical Seal 17D


Mechanical Seal 17D
