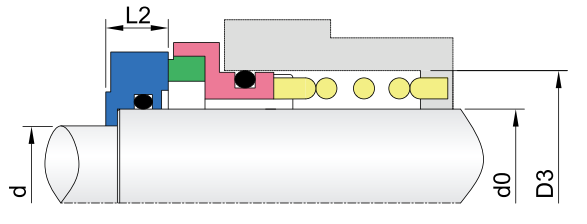

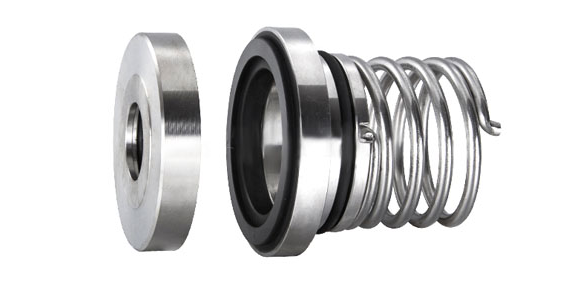

Mechanical Seal Al94 Replace AES P09, Vulcan 94 Suit for Tuchenhagen Ar, AG, Zr and Zg Pumps
Al94
Mechanical Seal Al94 Replace AES P09, Vulcan 94 Suit for Tuchenhagen Ar, AG, Zr and Zg Pumps
Quantity:
Describe：
Mechanical Seal AL94 cartridge-balanced design locks faces for zero leak at 16 bar, 180 °C; each Mechanical Seal AL94 pairs 316L and carbon-graphite, giving AL94 Mechanical Seal exceptional chemical and abrasion resistance. AL94 Mechanical Seal for Alfa Laval Pumps fits LKH, SRU housings 25–100 mm, letting AL94 Mechanical Seal for Alfa Laval Pumps retrofit in minutes. Install AL94 Mechanical Seal for Alfa Laval Pumps to cut MTBR 35 %—because Mechanical Seal AL94 proves AL94 Mechanical Seal and AL94 Mechanical Seal for Alfa Laval Pumps outclass standard seals every day.
Operational Conditions:
Temperature: -20ºC to +140ºC
Pressure: ≤1.2MPa
Speed: ≤10m/s
Materials:
Stationary Ring: SUS304/316, SIC, TC
Rotary Ring: CAR, SIC, TC
Secondary Seal: VIT, EPDM
Spring and Metal Parts: SUS304,SUS316
Operational Conditions:
Clean Water
sewage water
sewage water
oil and other moderately corrosive fluid
