Pump G13 mechanical seal

Mechancial seal G13 replace Burgmann G13 Stationary Seat

G13

G13 Stationary Seat
Replacement to:
Burgmann G13

Quantity:

Contact Now

add to cart

Mechanical seal G13

Type:
O-ring mounted seat

Materials:
CER, SIC,TC

Mechanical seal G13 Feature

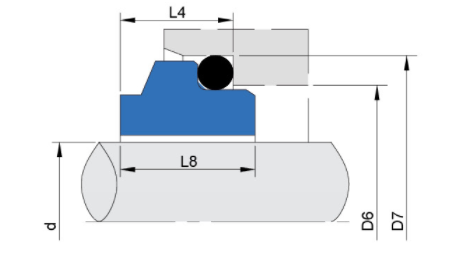

Mechanical seal G13

Size/	d	D6	D7	L4	L8
Metric	d	D6	D7	L4	L8
10	10	15.5	19.2	7.1	9
12	12	17.5	21.6	7.6	10
14	14	20.5	24.6	7.6	10
15	15	20.5	24.6	8.6	11
16	16	22	28	9	11.5
18	18	24	30	10	12.5
20	20	29.5	35	9.5	2.5
22	22	29.5	35	9.5	12.5
24	24	32	38	9.5	12.5
25	25	32	38	9.5	12.5
26	26	34	40	10	14
28	28	36	42	11	14
30	30	39.2	45	11	14
32	32	42.2	48	11	14
33	33	44.2	50	11.5	14.5
35	35	46.2	52	11.5	14.5
38	38	49.2	55	11.5	14.5
40	40	52.2	58	11.5	14.5
42	42	53.3	62	14.3	17
43	43	53.3	62	14.3	17
45	45	55.3	64	14.3	17
48	48	59.7	68.4	14.3	17
50	50	60.8	69.3	14.3	17
53	53	63.8	72.3	14.3	17
55	55	66.5	75.4	15.3	18
58	58	69.5	78.4	15.3	18
60	60	71.5	80.4	15.3	18
63	63	74.5	83.4	15.3	18
65	65	76.5	85.4	15.3	18
68	68	82.7	91.5	16	19
70	70	83	92	15.3	18
75	75	90.2	99	15.3	18
80	80	95.2	104	16.3	19
85	85	100.2	109	16.3	19
90	90	105.2	114	16.3	19
95	95	111.6	120.3	17.3	20
100	100	114.5	123.3	17.3	20
