H74D Mechanical Seal for Industrial Pumps

Mechanical seal H74D Replace the mechanical seal of Burgmann H74-D

H74D
Mechanical seal H74D
Replacement to:
Roten 882, LIDERING LMS10D, Burgmann M74-D, Anga VD, AESSEAL M010D
Quantity:
Contact Now
add to cart

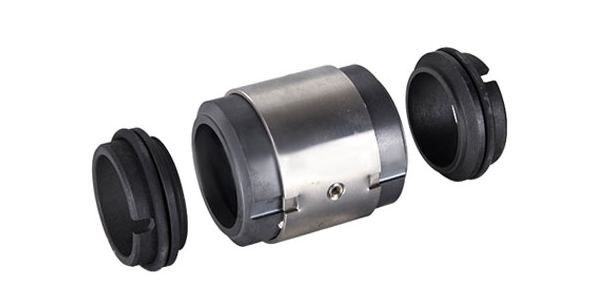

Mechanical Seal H74D
Description:
Mechanical seal H74D Replace the mechanical seal of Burgmann H74-D
Xindeng seal is a professional manufacturer and supplier of mechanical seal rings. We supply all standard types of materials in a range of Shore Hardnesses and colours. In addition to standard imperial and metric sizes, Xindeng seal also supply a wide variety of non-standard sizes. Please feel free to inquire us if you need any O-rings. Materials include; Nitrile, Silicone, EPDM, FKM, Viton, FFKM, and HNBR.
Operational Conditions:
Temperature: -20℃ to +190℃
Pressure: ≤1.2MPa
Speed: ≤15m/s

Materials:
Stationary Ring: Silicon Carbide, TC, Carbon
Rotary Ring: Silicon Carbide, Ceramic, TC
Secondary Seal: NBR, EPDM, Viton
Spring and Metal Parts: SUS304,SUS316

Applications:
Clean water,
sewage water
oil and other moderately corrosive fluids

Stationary Seat:
Standard: G92
Alternative:

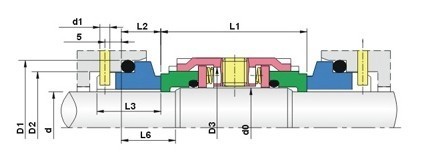

Mechanical Seal H74D Feature

Mechanical Seal H74D


Mechanical Seal H74D
