H7N Mechanical Seal for Pumps

Mechanical seal H7N Replace the mechanical seal of Burgmann H7N

H7N
Mechanical seal H7N
Replacement to:
Burgmann H7N,, AES SEAL W07DMB,Vulcan 1678,LIDERING LWS10B, Latty B68
Quantity:
Contact Now
add to cart

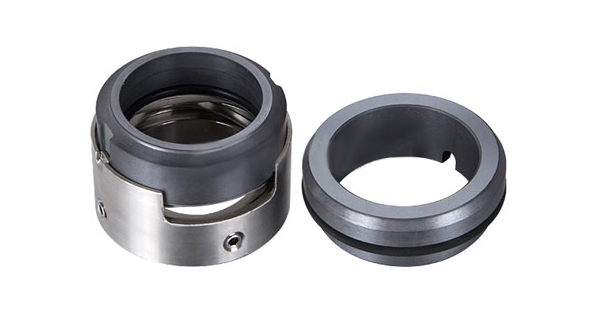

 Mechanical Seal H7N
 Describe：
     Mechanical Seal H7N locks faces for zero leak at 25 bar, 220 °C; each Mechanical Seal H7N pairs 316L, SiC, Viton, giving H7N Seals extreme corrosion resistance. H7N Seals fit ANSI/DIN bores 20-110 mm, letting H7N Mechanical Seal for Pumps retrofit pumps in minutes. Install H7N Mechanical Seal for Pumps to cut MTBR 45 %—because Mechanical Seal H7N proves H7N Seals outclass standard H7N Mechanical Seal for Pumps.
Operational Conditions:
Temperature: -20℃ to +190℃
Pressure: ≤1.2MPa
Speed: ≤15m/s

Materials:
Stationary Ring: Silicon Carbide, TC, Carbon
Rotary Ring: Silicon Carbide, Ceramic, TC
Secondary Seal: NBR, EPDM, Viton
Spring and Metal Parts: SUS304,SUS316

Applications:
Clean water,
sewage water
oil and other moderately corrosive fluids

Stationary Seat:
Standard: G9
Alternative:

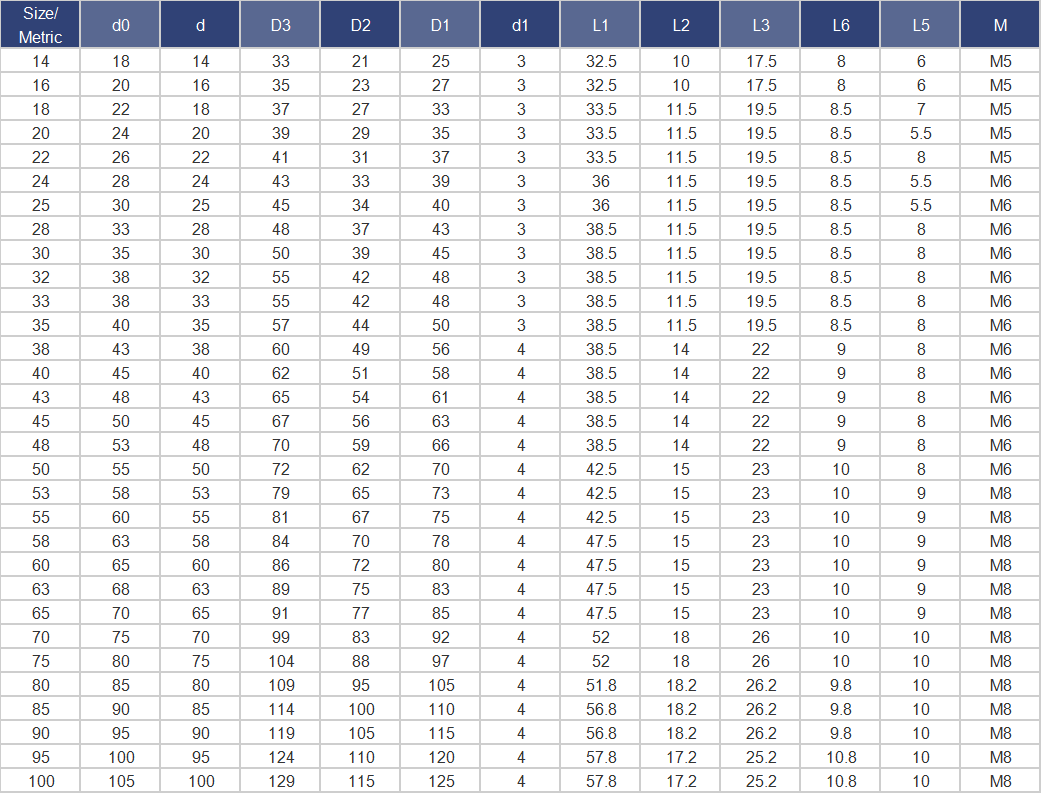

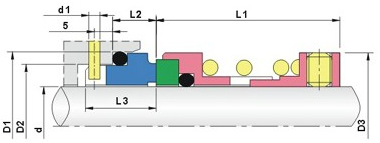

Mechanical Seal H7N Feature

Mechanical Seal H7N



Mechanical Seal H7N
