Mechanical Seal HJ92N

Mechanical Seal HJ92N Replace Burgmann HJ92N seal, Aesseal M010 seal, Roten EHS seal

HJ92N
Mechanical seal HJ92N
Replacement to:
Burgmann HJ92N, Anga US, AESSEAL M010,Roten EHS, Roplan 201, Latty B23, Hermetica M251K.NCS,
Quantity:
Contact Now
add to cart

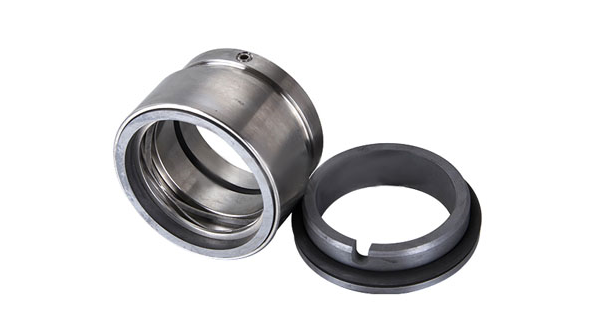

Mechanical Seal HJ92N
Describe：
   Mechanical Seal HJ92N cartridge-balanced design locks faces for zero leak at 25 bar, 220 °C; each Mechanical Seal HJ92N pairs 316L and silicon-carbide faces, giving Balanced HJ92N Mechanical Seal exceptional corrosion and abrasion resistance. HJ92N Mechanical Seal fits ANSI, DIN and ISO bores 25–120 mm, letting Balanced HJ92N Mechanical Seal retrofit centrifugal, chemical and wastewater pumps in minutes. Install Balanced HJ92N Mechanical Seal to cut MTBR 45 %—because Mechanical Seal HJ92N proves HJ92N Mechanical Seal and Balanced HJ92N Mechanical Seal outclass standard seals every day.
Operational Conditions:
Temperature：-20℃ to +180℃
Pressure： ≤2.5MPa
Speed： ≤15m/s

Materials:
Stationary Ring: Silicon Carbide, TC, Carbon
Rotary Ring: Silicon Carbide, Ceramic, TC
Secondary Seal: NBR, EPDM, Viton
Spring and Metal Parts: SUS304,SUS316

Applications:
Clean water,
sewage water
oil and other moderately corrosive fluids

Stationary Seat:
Standard: G16
Alternative: G9,G6


Mechanical Seal HJ92N Feature


Mechanical Seal HJ92N



Mechanical Seal HJ92N
