M2N Seals

Mechanical Seal M2N replace Burgmann M2N seal Aesseal T07D Roten UNITEN 22 seal

M2N
TBM2N mechanical seal
Replacement to:
Burgmann M2N, AESSEAL T07D, AESSEAL T07,Roten UNITEN 22, Roten 22, Hecker HN 400A
Quantity:
Contact Now
add to cart

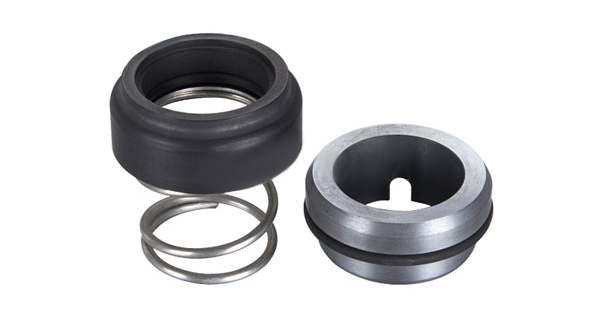

 Mechanical Seal M2N
Describe:
    Mechanical Seal M2N locks faces for zero leak at 12 bar, 180 °C; each Mechanical Seal M2N pairs 316SS, SiC, FKM, giving M2N Seals extreme chemical resistance. M2N Seals fit ANSI/DIN bores 18-80 mm, letting M2N Mechanical Seal for Pumps retrofit pumps in minutes. Install M2N Mechanical Seal for Pumps to cut MTBR 35 %—because Mechanical Seal M2N proves M2N Seals outclass standard M2N Mechanical Seal for Pumps.
Operational Conditions:
Temperature: -20℃ to +180℃
Pressure: ≤1.0MPa
Speed: ≤15m/s

Materials:
Stationary Ring: Silicon Carbide, TC, Carbon
Rotary Ring: Silicon Carbide, TC
Secondary Seal: NBR, EPDM, Viton
Spring and Metal Parts: SUS304,SUS316

Applications:
Clean water,
sewage water
oil and other moderately corrosive fluids

Stationary Seat:
Standard:
Alternative:

Mechanical Seal M2N Feature

Mechanical Seal M2N




Mechanical Seal M2N
