Describe:

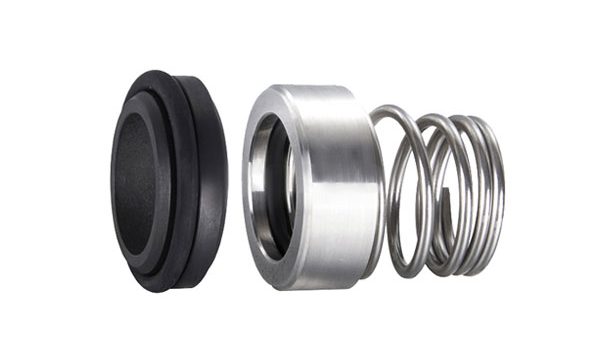

Mechanical Seal T120D locks faces for zero leak at 25 bar, 220 °C; every Mechanical Seal T120D pairs 316L, SiC, Viton, giving High-Quality T120D Mechanical Seal extreme corrosion resistance. Industrial Pump T120D Mechanical Seal fits ANSI/DIN bores 25-120 mm, letting Industrial Pump T120D Mechanical Seal retrofit pumps in minutes. Install High-Quality T120D Mechanical Seal to cut MTBR 45 %—because Mechanical Seal T120D proves High-Quality T120D Mechanical Seal and Industrial Pump T120D Mechanical Seal outclass standard seals.Mechanical Seal T120D locks faces for zero leak at 25 bar, 220 °C; every Mechanical Seal T120D pairs 316L, SiC, Viton, giving High-Quality T120D Mechanical Seal extreme corrosion resistance. Industrial Pump T120D Mechanical Seal fits ANSI/DIN bores 25-120 mm, letting Industrial Pump T120D Mechanical Seal retrofit pumps in minutes. Install High-Quality T120D Mechanical Seal to cut MTBR 45 %—because Mechanical Seal T120D proves High-Quality T120D Mechanical Seal and Industrial Pump T120D Mechanical Seal outclass standard seals.
Operational Conditions:
Temperature: -40℃ to +200℃
Pressure: ≤1.0MPa
Speed: ≤15m/s
Materials:
Stationary Ring: Silicon Carbide, TC, SUS304
Rotary Ring: Silicon Carbide, CAR, TC
Secondary Seal: NBR, EPDM, Viton
Spring and Metal Parts: SUS304,SUS316
Applications:
Clean water,
sewage water
oil and other moderately corrosive fluids
Stationary Seat:
Standard:
Alternative:
