Industrial Pump T41 Mechanical Seal

Mechanical Seal T41

T41
Mechanical seal T41
Quantity:
Contact Now
add to cart

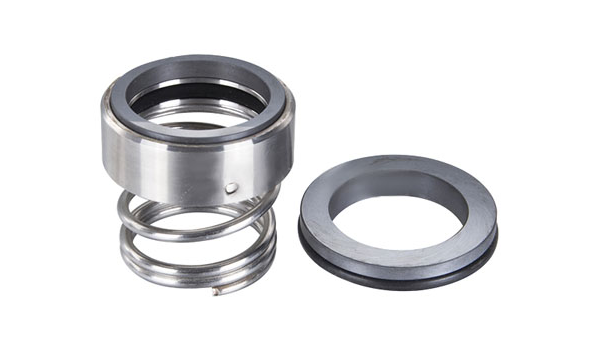

Mechanical Seal T41
Describe:
    Mechanical Seal T41 cartridge-balanced design locks faces for zero leak at 16 bar, 180 °C; each Mechanical Seal T41 pairs 316SS and carbon-graphite, giving T41 Mechanical Seal exceptional chemical and abrasion resistance. Industrial Pump T41 Mechanical Seal fits ANSI/DIN bores 18–80 mm, letting Industrial Pump T41 Mechanical Seal retrofit centrifugal, chemical and HVAC pumps in minutes. Install T41 Mechanical Seal to cut MTBR 35 %—because Mechanical Seal T41 proves T41 Mechanical Seal and Industrial Pump T41 Mechanical Seal outclass standard seals every day.
Operational Conditions:
Temperature: -20℃ to +180℃
Pressure: ≤1.0MPa
Speed: ≤15m/s

Materials:
Stationary Ring: Silicon Carbide, TC, Carbon
Rotary Ring: Silicon Carbide, Ceramic, TC
Secondary Seal: NBR, EPDM, Viton
Spring and Metal Parts: SUS304,SUS316


Applications:
Clean water,
sewage water
oil and other moderately corrosive fluids


Stationary Seat:
Standard:
Alternative:

Mechanical Seal T41 Feature


Mechanical Seal T41



Mechanical Seal T41
