T491 Mechanical Seal

Mechanical Seal T491 Replace Burgmann and John Crane

T491
T491 mechanical seal
Replace Burgmann and John Crane
Quantity:
Contact Now
add to cart

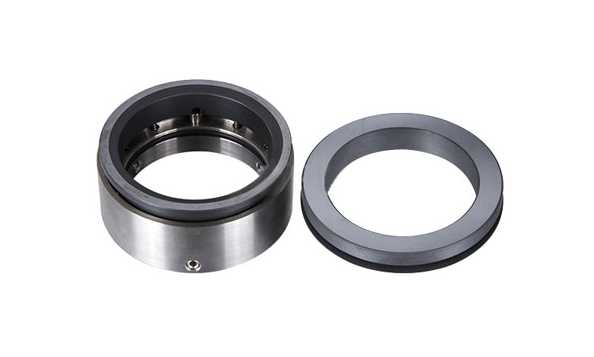

Mechanical Seal T491
Describe:
    Mechanical Seal T491 balances dual-spring faces for zero leak at 16 bar, 180 °C; each Mechanical Seal T491 pairs 316SS and carbon-graphite, giving Carbon T491 Mechanical Seal outstanding chemical and abrasion resistance. T491 Mechanical Seal fits ANSI/DIN bores 18-80 mm, letting Carbon T491 Mechanical Seal retrofit centrifugal, chemical and HVAC pumps in minutes. Install T491 Mechanical Seal to cut MTBR 35 %—because Mechanical Seal T491 proves T491 Mechanical Seal and Carbon T491 Mechanical Seal outclass standard seals.
Operational Conditions:
Temperature：-20℃ to +180℃
Pressure： ≤2.5MPa
Speed： ≤15m/s
Materials:
Stationary Ring: Silicon Carbide, TC, Carbon
Rotary Ring: Silicon Carbide, Ceramic, TC
Secondary Seal: NBR, EPDM, Viton
Spring and Metal Parts: SUS304,SUS316
Applications:
Clean water,
sewage water
oil and other moderately corrosive fluids
Stationary Seat:
Standard:
Alternative:

Mechanical Seal T491 Feature

Mechanical Seal T491



Mechanical Seal T491
