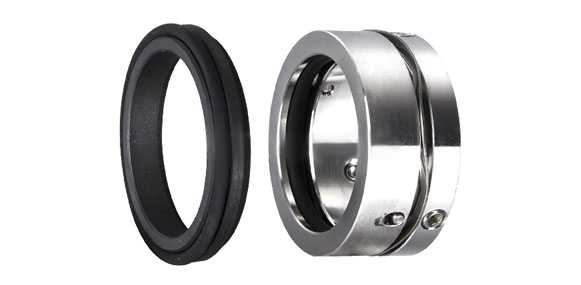

Mechanical Seal T68

Mechanical Seal T68 Replace Aesseal W01 seal, Flowserve 168 seal, Roten 7K seal

T68
Mechanical seal T68
Replacement to:
Aesseal W01 seal
Flowserve 168 seal
Latty T510
Roten 7K seal
Quantity:
Contact Now
add to cart
Mechanical Seal T68
             Describe:
    Mechanical Seal T68 locks faces for zero leak at 16 bar; each Mechanical Seal T68 pairs 316SS and SiC, giving High-Performance T68 Mechanical Seal extreme chemical resistance. T68 Mechanical Seal fits ANSI bores 18-80 mm, letting High-Performance T68 Mechanical Seal retrofit pumps in minutes. Install High-Performance T68 Mechanical Seal to cut MTBR 35 %.Mechanical Seal T68 locks faces for zero leak at 16 bar; each Mechanical Seal T68 pairs 316SS and SiC, giving High-Performance . T68 Mechanical Seal fits ANSI bores 18-80 mm, letting High-Performance T68 Mechanical Seal retrofit pumps in minutes. Install High-Performance T68 Mechanical Seal to cut MTBR 35 %—because Mechanical Seal T68 proves High-Performance  T68 Mechanical Seal outclass rivals.
Operational Conditions:
Temperature：-40℃ to +200℃
Pressure： ≤0.8MPa
Speed： ≤18m/s

Materials:
Stationary Ring: Silicon Carbide, TC, Carbon
Rotary Ring: Silicon Carbide, SUS304, SUS316, TC
Secondary Seal: NBR, EPDM, Viton
Spring and Metal Parts: SUS304,SUS316

Applications:
Clean water,
sewage water
oil and other moderately corrosive fluids

Stationary Seat:
Standard: G9
Alternative:

Mechanical Seal T68 Feature
