Mechanical Seal T687

Mechanical Seal T687 replace John Crane 680

T687
Mechanical seal T687
Replacement to:
John Crane 680
Quantity:
Contact Now
add to cart

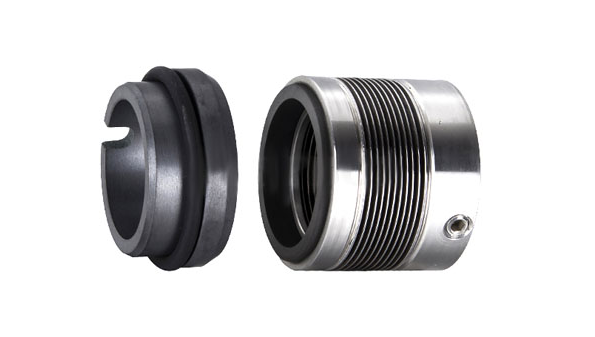

Mechanical Seal T687
Describe:
   Mechanical Seal T687 cartridge-balanced design locks faces for zero leak at 25 bar, 220 °C; each Mechanical Seal T687 pairs 316L and silicon-carbide, giving T687 Mechanical Seal outstanding corrosion and abrasion resistance. T687 Mechanical Seal for Industrial Pumps fits ANSI/DIN bores 25–120 mm, letting T687 Mechanical Seal for Industrial Pumps retrofit centrifugal, chemical and wastewater pumps in minutes. Install T687 Mechanical Seal for Industrial Pumps to cut MTBR 40 %—because Mechanical Seal T687 proves T687 Mechanical Seal and T687 Mechanical Seal for Industrial Pumps outclass standard seals every day.
Operational Conditions:
Temperature: -75℃ to +200℃
Pressure: ≤2.1MPa
Speed: ≤23m/s

Materials:
Stationary Ring: Silicon Carbide, TC, Cer
Rotary Ring: Silicon Carbide, Car, TC
Secondary Seal: Expanded Graphite, VIT, EPDM
Spring and Metal Parts: SUS304,SUS316

Applications:
Clean water,
sewage water
oil and other moderately corrosive fluids


Stationary Seat:
Standard: G9
Alternative:

Mechanical Seal T687 Feature


Mechanical Seal T687



Mechanical Seal T687
