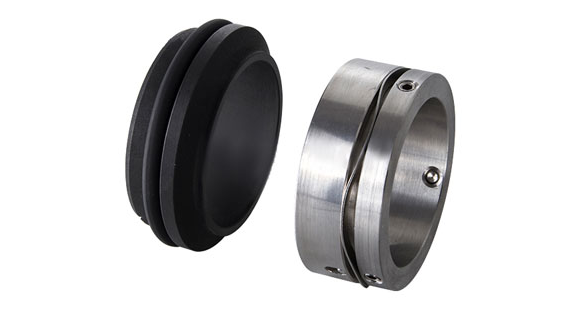

Mechanical Seal T68C

Mechanical Seal T68C Replace Roten UNITEN 7K seal, Aesseal W02 seal, Sterling 280Lsea

T68C
T68C mechanical seal
Replacement to:
AESSEAL W03,W03U, W03SU,W03S, W03DU, Vulcan 1688W,Sterling 280W, Roplan RTH87 / R90 seal, John Crane 87 (EI/ EC) seal
Quantity:
Contact Now
add to cart


Mechanical Seal T68C

Describe:
   Mechanical Seal T68C cartridge-balanced design locks faces for zero leak at 16 bar, 180 °C; each Mechanical Seal T68C pairs 316SS and carbon-graphite, giving Carbon T68C Mechanical Seal outstanding chemical and abrasion resistance. T68C Mechanical Seal fits ANSI/DIN bores 18-80 mm, letting Carbon T68C Mechanical Seal retrofit centrifugal, chemical and HVAC pumps in minutes. Install T68C Mechanical Seal to cut MTBR 35 %—because Mechanical Seal T68C proves T68C Mechanical Seal and Carbon T68C Mechanical Seal outclass standard seals.
Operational Conditions:
Temperature：-40℃ to +200℃
Pressure： ≤0.8MPa
Speed： ≤18m/s

Materials:
Stationary Ring: Silicon Carbide, TC, Carbon
Rotary Ring: Silicon Carbide, SUS304, SUS316, TC
Secondary Seal: NBR, EPDM, Viton
Spring and Metal Parts: SUS304,SUS316

Applications:
Clean water,
sewage water
oil and other moderately corrosive fluids

Stationary Seat:
Standard:
Alternative:

Mechanical Seal T68C Feature


Mechanical Seal T68C


Mechanical Seal T68C
