Describe:

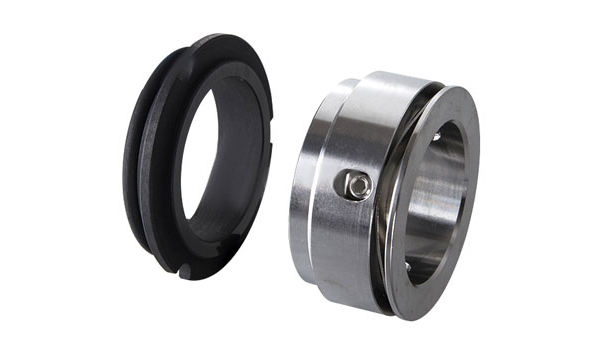

Mechanical Seal T68D cartridge-balanced design locks faces for zero leak at 16 bar, 180 °C; each Mechanical Seal T68D pairs 316SS and carbon-graphite, giving Carbon T68D Mechanical Seal outstanding chemical and abrasion resistance. T68D Mechanical Seal fits ANSI/DIN bores 18–80 mm, letting Carbon T68D Mechanical Seal retrofit centrifugal, chemical and HVAC pumps in minutes. Install T68D Mechanical Seal to cut MTBR 35 %—because Mechanical Seal T68D proves T68D Mechanical Seal and Carbon T68D Mechanical Seal outclass standard seals.
Operational Conditions:
Temperature：-40℃ to +200℃
Pressure： ≤0.8MPa
Speed： ≤18m/s
Materials:
Stationary Ring: Silicon Carbide, TC, Carbon
Rotary Ring: Silicon Carbide, SUS304, SUS316, TC
Secondary Seal: NBR, EPDM, Viton
Spring and Metal Parts: SUS304,SUS316
Applications:
Clean water,
sewage water
oil and other moderately corrosive fluids
Stationary Seat:
Standard:
Alternative:
