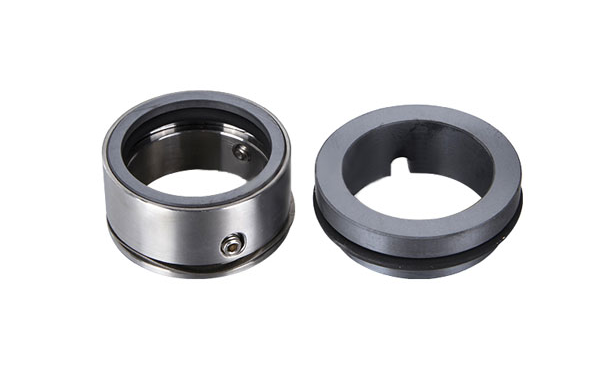

 Mechanical Seal T82
Describe:
    Mechanical Seal T82 cartridge-balanced design locks faces for zero leak at 12 bar, 160 °C; each Mechanical Seal T82 pairs 316SS and carbon faces, giving Carbon T82 Mechanical Seal outstanding chemical and abrasion resistance. T82 Mechanical Seal fits ANSI/DIN bores 15–65 mm, letting Carbon T82 Mechanical Seal retrofit booster, circulator and water pumps in minutes. Install T82 Mechanical Seal to cut MTBR 30 %—because Mechanical Seal T82 proves Carbon T82 Mechanical Seal and T82 Mechanical Seal outclass standard seals in clean-water duty.
Operational Conditions:
Temperature: -30℃ to +200℃
Pressure: ≤1.2MPa
Speed: ≤20m/s

Materials:
Stationary Ring: Silicon Carbide, TC, Carbon
Rotary Ring: Silicon Carbide, Ceramic, TC
Secondary Seal: NBR, EPDM, Viton
Spring and Metal Parts: SUS304,SUS316
Applications
Clean water,
sewage water
oil and other moderately corrosive fluids
Stationary Seat:
Standard: G6
Alternative:

Mechanical Seal T82 Feature
