Mechanical Seal T980 Replace Roten 1500 seal Aesseal P080 sea

T980

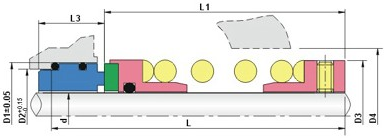

Mechanical seal T980

Replacement to:
Roten 1500 seal
Aesseal P080 seal

Quantity:

Contact Now

add to cart

Describe：

Mechanical Seal T980 cartridge-balanced seal locks faces for zero leak at 30 bar, 230 °C; each Mechanical Seal T980 pairs duplex 2205, SiC, FKM, giving T980 Seals extreme corrosion and abrasion resistance. T980 Seals fit ANSI, DIN, ISO bores 25-120 mm, letting T980 Mechanical Seal for Pumps retrofit centrifugal, chemical and wastewater pumps in minutes. Install T980 Mechanical Seal for Pumps to cut MTBR 50 %—because Mechanical Seal T980 proves T980 Seals outclass standard T980 Mechanical Seal for Pumps.

Operational Conditions:
Temperature：-50℃ to +200℃
Pressure： ≤1 MPa
Speed： ≤20 m/s

Materials:
Stationary Ring: Silicon Carbide, TC, Carbon
Rotary Ring: Silicon Carbide, TC
Secondary Seal: NBR, EPDM, Viton
Spring and Metal Parts: SUS304,SUS316

Applications:
Clean water,
sewage water
oil and other moderately corrosive fluids

Stationary Seat:
Standard:
Alternative:
