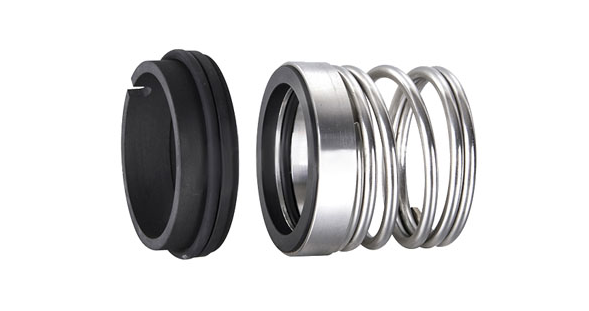

Mechanical Seal TB950 cartridge-balanced design locks faces for zero leak at 25 bar, 220 °C; each Mechanical Seal TB950 pairs 316L, SiC, Viton, giving TB950 Mechanical Seal extreme corrosion resistance. Industrial Pump TB950 Mechanical Seal fits ANSI/DIN bores 20-110 mm, allowing Industrial Pump TB950 Mechanical Seal to retrofit centrifugal and process pumps in minutes. Install Industrial Pump TB950 Mechanical Seal to cut MTBR 45 %—because Mechanical Seal TB950 proves TB950 Mechanical Seal and Industrial Pump TB950 Mechanical Seal outclass standard seals.
Operational Conditions:
Temperature：-50℃ to +200℃
Pressure： ≤1 MPa
Speed： ≤20 m/s
Materials:
Stationary Ring: Silicon Carbide, TC, Carbon
Rotary Ring: Silicon Carbide, TC
Secondary Seal: NBR, EPDM, Viton
Spring and Metal Parts: SUS304,SUS316
Applications:
Clean water,
sewage water
oil and other moderately corrosive fluids
Stationary Seat:
Standard:
Alternative:
