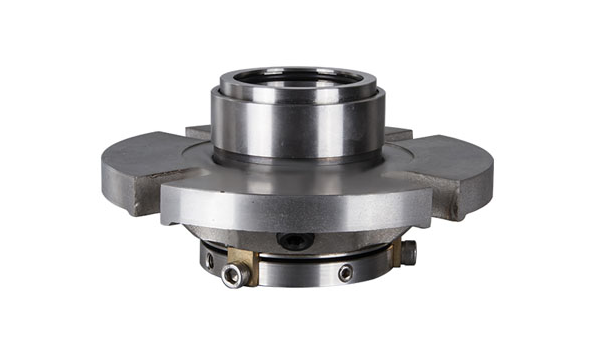

Mechanical Seal TGU1 cartridge-balanced design locks faces for zero leak at 25 bar, 220 °C; each Mechanical Seal TGU1 pairs 316L and silicon-carbide, giving TGU1 Mechanical Seal exceptional corrosion and abrasion resistance. Industrial Pump TGU1 Mechanical Seal fits ANSI/DIN bores 25–120 mm, letting Industrial Pump TGU1 Mechanical Seal retrofit centrifugal, chemical and wastewater pumps in minutes. Install Industrial Pump TGU1 Mechanical Seal to cut MTBR 40 %—because Mechanical Seal TGU1 proves TGU1 Mechanical Seal and Industrial Pump TGU1 Mechanical Seal outclass standard seals every day.
Operational Conditions:
Temperature: -20℃ to +220℃
Pressure: ≤2.5MPa
Speed: ≤15m/s
Materials:
Rotary Ring: CAR,SIC,TC
Secondary Seal: Viton,EPDM,KALREZ
Spring and Metal Parts: SUS304,SUS316
Applications:
Clean water,
sewage water
oil and other moderately corrosive fluids
Stationary Seat:
Standard:
Alternative:
