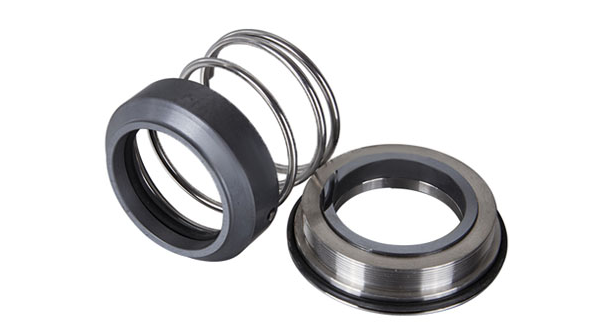

AL92-42 Mechanical Seal

Mechanical seal AL92-42 replace AES AES P07-42(42mm), Suit for Alafa Laval LKH Series Pumps

AL92-42
Mechanical seal AL92-42
AL92-42 Mechanical seal replace AES AES P07-42(42mm),
Suit for Alafa Laval LKH Series Pumps
Quantity:
Contact Now
add to cart
Mechanical Seal AL92-42

Describe：
  Mechanical Seal AL92-42 cartridge-balanced design locks faces for zero leak at 16 bar, 180 °C; each Mechanical Seal AL92-42 pairs 316L and carbon-graphite, giving AL92-42 Mechanical Seal outstanding chemical and abrasion resistance. AL92-42 Balanced Mechanical Seal fits Alfa Laval LKH 42 mm bore, letting AL92-42 Balanced Mechanical Seal retrofit booster and HVAC pumps in minutes. Install AL92-42 Balanced Mechanical Seal to cut MTBR 35 %—because Mechanical Seal AL92-42 proves AL92-42 Mechanical Seal and AL92-42 Balanced Mechanical Seal outclass standard seals every day.
Operational Conditions:
Temperature: -20℃ to +140℃
Pressure: ≤1.2MPa
Speed: ≤10m/s

Materials:
Stationary Ring: SUS304/316, SIC, TC
Rotary Ring: CAR, SIC, TC
Secondary Seal: VIT, EPDM
Spring and Metal Parts: SUS304,SUS316

Operational Conditions:
Clean Watersewage water
oil and other moderately corrosive fluid

Seal Size:
42mm

 Mechanical Seal AL92-42 Feature

Mechanical Seal AL92-42
