Mechanical seal T9 Replace John Crane T109, T9, T909 seal Aesseal M01 seal
T9
Mechanical seal T9
Replace:
John Crane T109, T9, T909 seal
Aesseal M01 seal
Replace:
John Crane T109, T9, T909 seal
Aesseal M01 seal
Quantity:
Description:

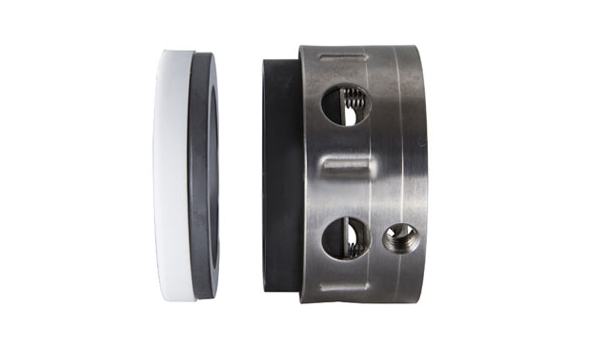

The Mechanical Seal T9 is a high-performance, single-spring cartridge engineered for water, oil, and mild-chemical duties. Every T9 Mechanical Seal combines carbon vs. ceramic faces with a 316 stainless-steel spring, rated –20 °C to 120 °C and 10 bar. Its compact length lets the Industrial Pump T9 MechanicalSeal drop into ANSI, DIN, and ISO bores without spacers, cutting downtime by 50 %. Balanced geometry reduces heat and torque, extending seal life. Choose Mechanical Seal T9 interchangeably with T9 Mechanical Seal for reliable, leak-free performance in every Industrial Pump T9 MechanicalSeal application.
Operational Conditions:
Temperature: -40℃ to +250℃
Pressure: ≤1.2MPa
Speed: ≤15m/s
Temperature: -40℃ to +250℃
Pressure: ≤1.2MPa
Speed: ≤15m/s
Materials:
Stationary Ring: Silicon Carbide, TC, Carbon
Rotary Ring: Silicon Carbide, Ceramic, TC
Secondary Seal: NBR, EPDM, Viton
Spring and Metal Parts: SUS304,SUS316
Stationary Ring: Silicon Carbide, TC, Carbon
Rotary Ring: Silicon Carbide, Ceramic, TC
Secondary Seal: NBR, EPDM, Viton
Spring and Metal Parts: SUS304,SUS316
Applications:
Clean water,
sewage water
oil and other moderately corrosive fluids
Clean water,
sewage water
oil and other moderately corrosive fluids
Stationary Seat:
Standard:
Alternative:
Standard:
Alternative:
