Mechanical seal T9B Replace Vulcan T109B John Crane T9B Aesseal M02 seal
T9B

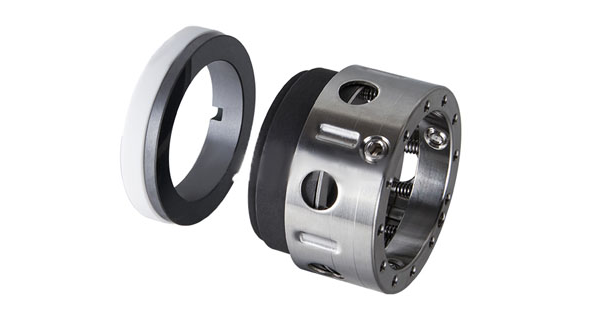

Mechanical seal T9B
Replace:
Vulcan T109B
John Crane T9B
Aesseal M02 seal
Replace:
Vulcan T109B
John Crane T9B
Aesseal M02 seal
Quantity:
Describe:
Mechanical Seal T9B pioneers clean-water sealing: Mechanical Seal T9B dual-balanced faces cut leakage to 0.5 ml/h. T9B Mechanical Seal pairs silicon-carbide/graphite rings, rated 1.2 MPa. T9B Mechanical Seal for Clean Water snaps into ANSI & DIN pumps, boosting MTBR 30%. Choose T9B Mechanical Seal for Clean Water to upgrade every T9B Mechanical Seal, because Mechanical Seal T9B is the T9B Mechanical Seal for Clean Water that defines T9B reliability.
Operational Conditions:
Temperature: -40℃ to +250℃
Pressure: ≤1.2MPa
Speed: ≤15m/s
Temperature: -40℃ to +250℃
Pressure: ≤1.2MPa
Speed: ≤15m/s
Materials:
Stationary Ring: Silicon Carbide, TC, Carbon
Rotary Ring: Silicon Carbide, Ceramic, TC
Secondary Seal: NBR, EPDM, Viton
Spring and Metal Parts: SUS304,SUS316
Applications:
Clean water,
sewage water
oil and other moderately corrosive fluids
Stationary Seat:
Standard:
Alternative:
