Mechanical Seal T59U replace Burgmann BT-C56.KU seal John Crane T59U seal Aesseal M03 seal
T59U

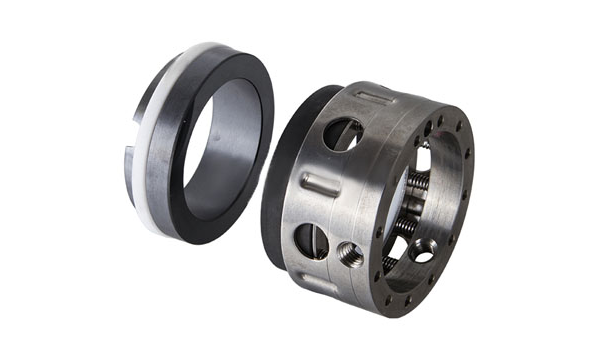

T59U mechanical seal
Replacement to:
Burgmann BT-C56.KU seal
John Crane T59U seal
Aesseal M03 seal
Replacement to:
Burgmann BT-C56.KU seal
John Crane T59U seal
Aesseal M03 seal
Quantity:
Description:
The T59U Mechanical Seal is a compact cartridge engineered for chemical, water and oil pumps. Each T59U Mechanical Seal for Pumps pairs carbon vs. ceramic faces with PTFE bellows, rated –30 °C to 150 °C and 16 bar. Its short working length lets T59U Seals drop into ANSI, DIN and ISO bores without spacers, cutting downtime by 50 %. Balanced geometry lowers heat and torque, extending seal life. Choose T59U Mechanical Seal or T59U Mechanical Seal for Pumps for reliable, leak-free performance in every T59U Seals application.
The T59U Mechanical Seal is a compact cartridge engineered for chemical, water and oil pumps. Each T59U Mechanical Seal for Pumps pairs carbon vs. ceramic faces with PTFE bellows, rated –30 °C to 150 °C and 16 bar. Its short working length lets T59U Seals drop into ANSI, DIN and ISO bores without spacers, cutting downtime by 50 %. Balanced geometry lowers heat and torque, extending seal life. Choose T59U Mechanical Seal or T59U Mechanical Seal for Pumps for reliable, leak-free performance in every T59U Seals application.
Operational Conditions:
Temperature: -40℃ to +250℃
Pressure: ≤2.5MPa
Speed: ≤15m/s
Temperature: -40℃ to +250℃
Pressure: ≤2.5MPa
Speed: ≤15m/s
Materials:
Stationary Ring: Silicon Carbide, TC, Carbon
Rotary Ring: Silicon Carbide, Ceramic, TC
Secondary Seal: PTFE
Spring and Metal Parts: SUS304,SUS316
Stationary Ring: Silicon Carbide, TC, Carbon
Rotary Ring: Silicon Carbide, Ceramic, TC
Secondary Seal: PTFE
Spring and Metal Parts: SUS304,SUS316
Applications:
Clean water,
sewage water
oil and other moderately corrosive fluids
Clean water,
sewage water
oil and other moderately corrosive fluids
Stationary Seat:
Standard: G6
Alternative:
Standard: G6
Alternative:
